omero_JSONQueryToolbox: Integrating OMERO data

Integrate links and metadata for images deposited in OMERO in your ELN by using the JSON API of OMERO. This guide will walk you through setting up the omero_JSONQueryToolbox at your institution, including all necessary scripts and step-by-step instructions.

Supported ELN Platforms

  • openBIS (version>=20.10.0)

Prerequisites

To successfully use the omero_JSONQueryToolbox, ensure that the following conditions are met:

  1. You have a running OMERO instance.

  2. You have a compatible ELN instance (as listed above).

  3. You have an OMERO account with restricted admin privileges (read only).

  4. To run the script omeroJSON_grabber.py on the same system where your ELN server runs, make sure the following Python modules are installed on your Python environment for your system (which may be separate from the Python environment used to run the ELN):

    requests (tested with v2.27.1)
markdown (tested with v3.3.7)

Installation

Definitions:

  • $PATH_SCRIPT: Directory on your ELN server where you want to store the omeroJSON_grabber.py script (e.g. /home/openbis/openbis/server_configurations/)

openBIS Server Setup

  1. Place omeroJSON_grabber.py on your ELN Server in $PATH_SCRIPT.

  2. Edit omeroJSON_grabber.py:
    Locate the “Configuration” section in the script and customize the following parameters to fit your local environment:

    # Login information of OMERO Admin Account for data access
SUDO_USERNAME = # Username
PASSWORD = # Password
# Your OMERO host address
OMERO_WEB_HOST = # e.g. https://omero.myinstitution.de
# omeroJSON_grabber can additionally save the requested data on the server.
SAVE_OUTPUT = # choose 'True' to save and 'False' to skip
# Files created by omeroJSON_grabber will be saved here:
OUTPUT_PATH = # recommendation: /home/openbis/openbis/server_configurations/transitionlayer_data/

  3. Check File Access Rights:

    • Ensure that omeroJSON_grabber.py has the following permissions: ‘-rwx—r–’ to execute the Python script.

    • Confirm that the output path chosen in omeroJSON_grabber.py has permissions set to ‘drwx——’ to allow file saving.

openBIS Web Client Admin Setup

  1. Create openBIS Property Types OMERO_IDS, OMERO_ID_TYPE and OMERO_METADATA:

    Note: You can choose different codes names, but remember to update them in dict2openBIS_converter.jy accordingly.

    Use the following input values:

    • OMERO_IDS: property type for giving the OMERO IDS I want to retrieve metadata for

      Code = OMERO_IDS
Description = # e.g Comma separated OMERO IDs (eg.: 55, 56, 77)
Data Type = VARCHAR

    • OMERO_ID_TYPE: property type for selecting the OMERO object type (Images or Datasets)

      Code = OMERO_ID_TYPE
Description = # e.g. Choose if you put OMERO Dataset IDs or OMERO Image IDs in OMERO_IDS
# Select and create a controlled vocabulary which has the values “DATASET” and “IMAGES”
Data Type = CONTROLLEDVOCABULARY

    • OMERO_METADATA: property type for displaying the gathered OMERO metadata table

      Code = OMERO_METADATA
Data Type = XML

openBIS Web Client NG-Admin Setup

Create an openBIS Script to call omeroJSON_grabber.py by creating a dynamic property plugin:

  • Login to the NG-Admin Web Client of your openBIS

  • Navigate to “Tools”, Click on “Dynamic Property Plugins” and then click “Add”

  • Use the following settings:

    • Name: dict2openBIS_converter

    • Entity Kind: Object

    • Description: (Enter a description)

  • Copy the content from the provided dict2openBIS_converter.jy file into the script field

  • Adapt the copied content to your local environment by modifying the following values under ADAPT TO YOUR SYSTEM:

    ID_PROPERTY = OMERO_IDS
TYPE_PROPERTY = OMERO_ID_TYPE
PATH = $PATH_SCRIPT/omeroJSON_grabber.py
# choose one of the output format: "json", "md", or "html"
OUTPUT_FORMAT =

Setup Web Client

  1. To display a table in the ELN, the property type OMERO_METADATA has to become a Spreadsheet:

    • Login as admin to your openBIS instance.

    • Go to “General Settings”.

    • Expand “Custom Widgets” and add OMERO_METADATA with “Spreadsheet”.

  2. Assign the property types to an object type of your choice and connect them to the openBIS Script:

    • Ensure all three property types (OMERO_IDS, OMERO_ID_TYPE, OMERO_METADATA) are added to the same object type

    • When adding OMERO_METADATA select “handled by script” and choose dict2openBIS_converter.jy

Everything is now set up and ready to use now. The table with the metadata shows up after filling both OMERO property types and saving the object. If the metadata table does not display immediately after saving, try reloading the object to view the metadata.

(back to top)

Usage

Input

Put all OMERO IDs you want to retrieve metadata from in the field “OMERO IDs” and select the data type corresponding to the given IDs:

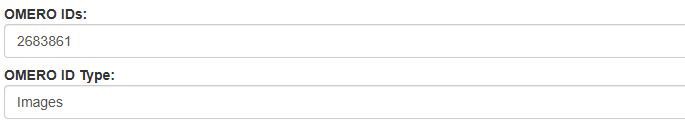

openBIS input screenshot

Then “Save”.

Result

The table with the linked metadata will automatically appear below. You might need to reload the page.

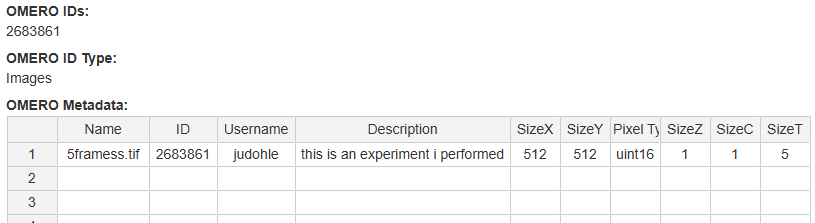

openBIS result screenshot

Note: This table gets updated every time you edit the openBIS object. You can add or remove IDs at any time. The registrator of the openBIS experiment and the OMERO image owner have to be the same to integrate the metadata table.
